Free Flow Conveyor [CV50C]
Eco Electric conveyor (Free Flow conveyor) which has both strength to carry a heavy object up to 280kg and the safety to stop its conveyance with one hand.
Safety fences that need to be installed to ensure human safety and sensors that detect human intrusions are not required, making it possible to work in cooperation with machines. It has great reputation to use at production line in automotive industry, which people assemble parts to products while flowing products on the conveyor.

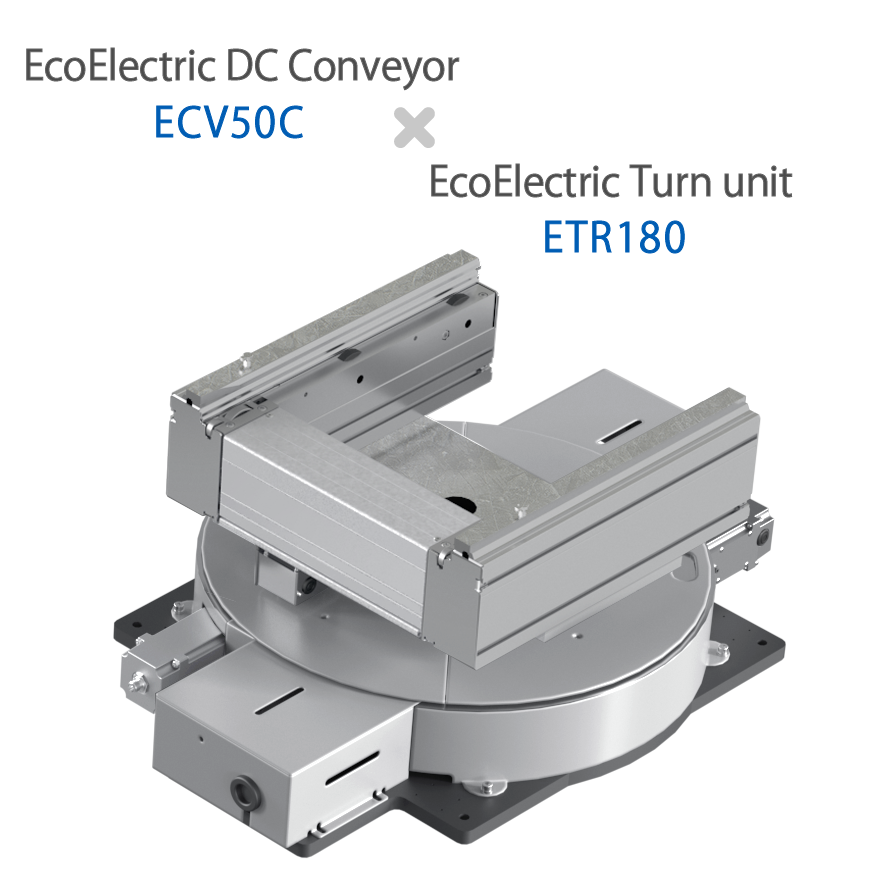

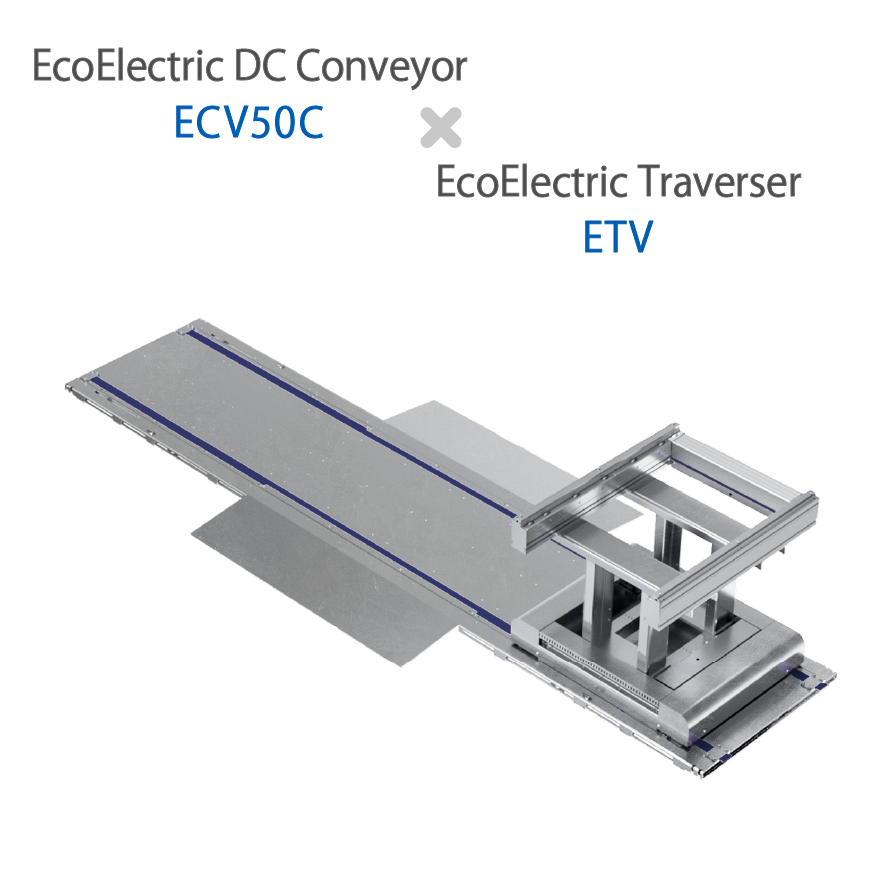

Combined with the Eco electric series, it is possible to actualize a production line that does not require pneumatic tooling, and it is possible to reduce the running cost drastically.

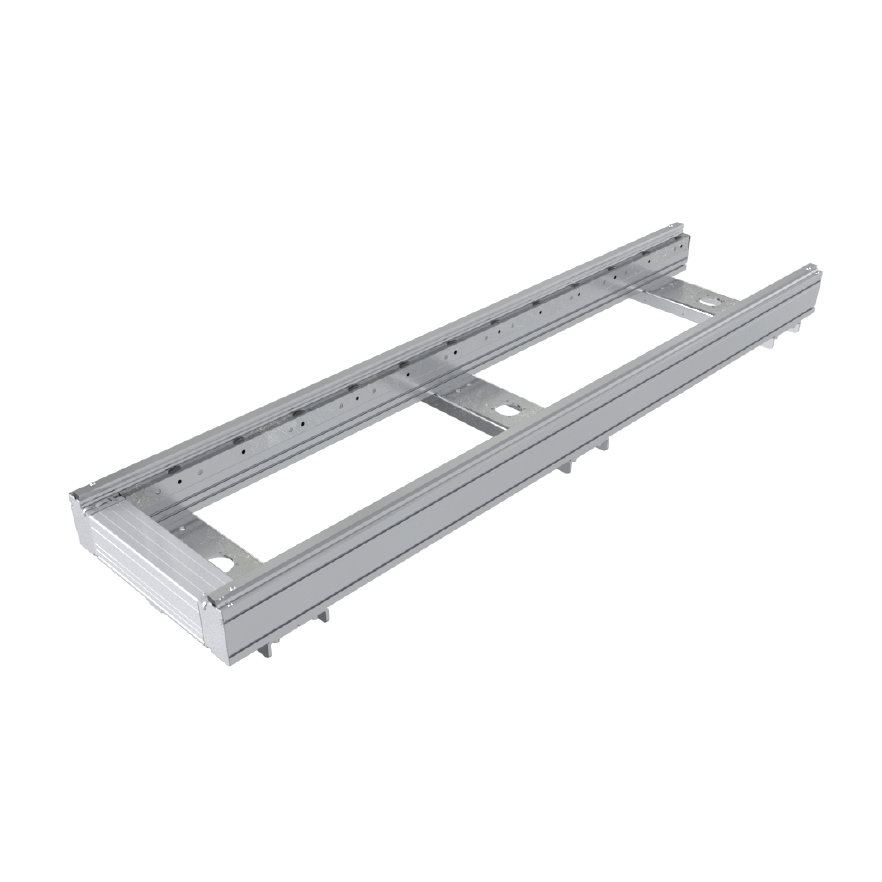

This conveyor is constructed with our original aluminum frame that has been developed through years of know-how, high in extensibility and maintainability.
Features
Extensibility

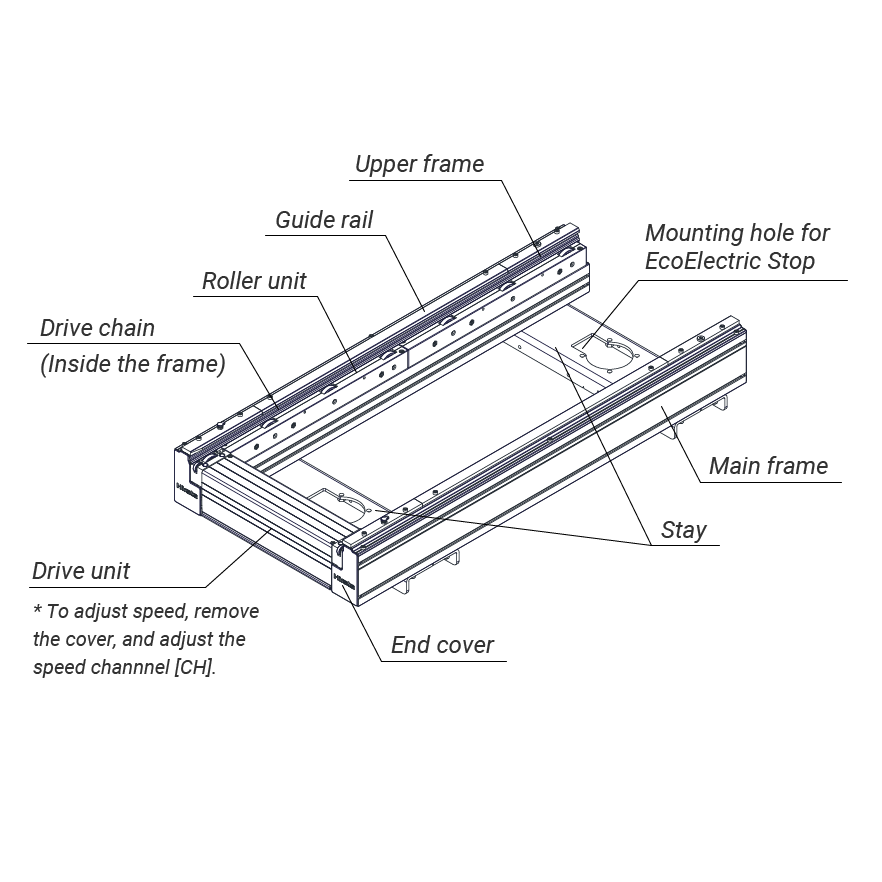

Large space in the center of the conveyor offers easy extension for locators and other devices. (See below picture for detail.*1)
Easy to install parts on the slits with bolts along the side of the frame.
Easy to maintain
In-house developed, unique structure makes drive chain tension adjustment unnecessary.[Patented]

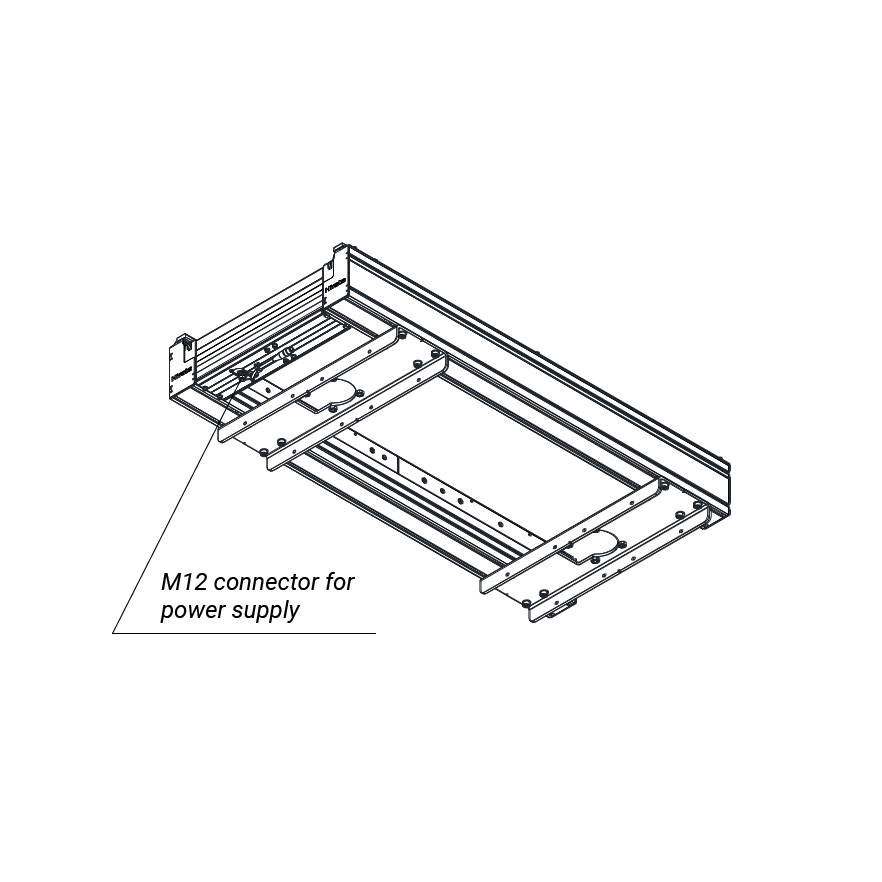

Easy to replace the roller units and the motor.(See below picture for detail.*2)
Since the driving chain is placed inside the frame, oil and dusts are less likely invaded structurally, which are often generated at the production site.
Flexibility
Modularized conveyor that flexibly accommodates layout changes.
Readily available right after installation.
Energy and Cost saving
Combined with our original eco-electric series, We achieved to build a transportation system without pneumatic equipment, which has few peripheral parts and low running cost.
Safety
Since drive chain is not exposed, it is safe with no entanglement or parts entering.
Space saving
With the patent structure, the motor position and the drive transmission countershaft are set at approximately the same height as the conveying roller. It actualized a compact cross section of the conveyor and low flooring.

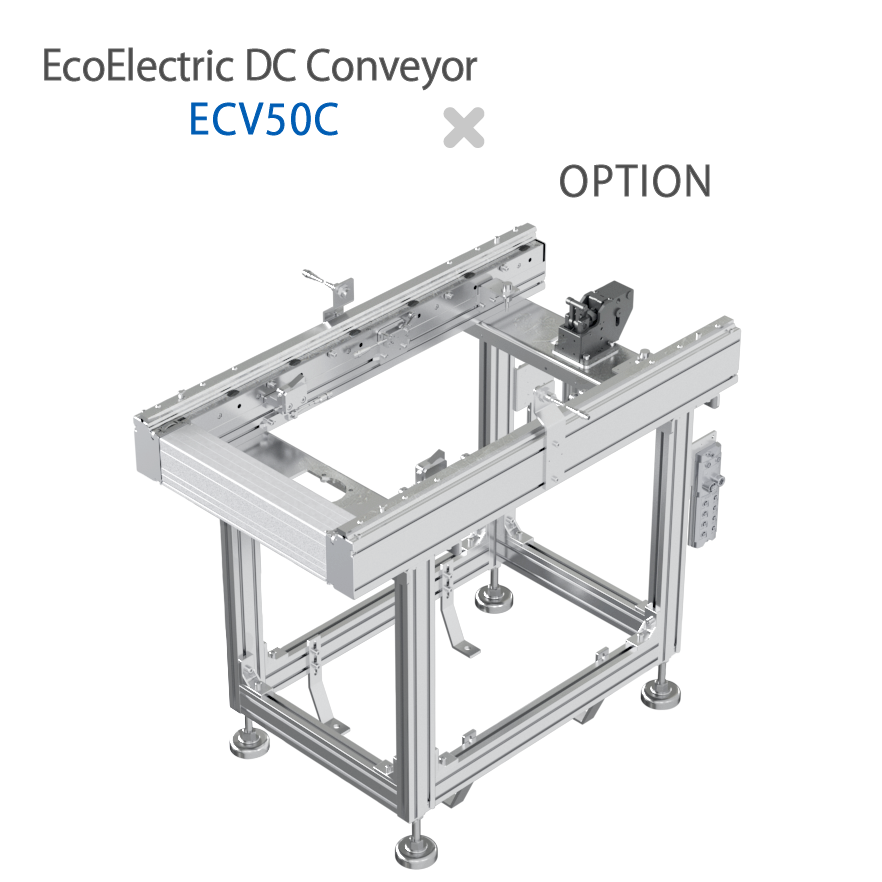

OPTION
Upper limit detection sensor
Selectable from OMRON and effector.
Sensor cover
Protects the sensor from impacts and drips caused by dropping objects from above.
Mechanical stopper
Positioning of the pallet A mechanical stopper that stops the pallet instead of the stopper lever when raising and lowering.
*For details, see Section 3-2 of the instruction manual.
